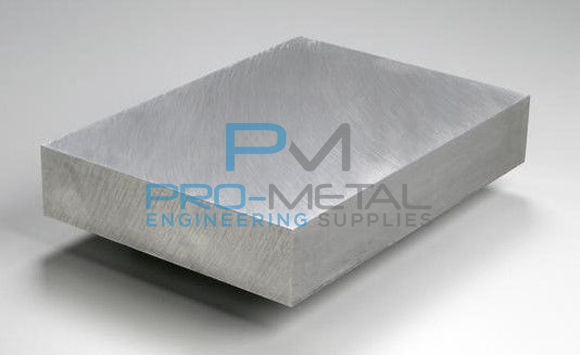

5083 Aluminum Plate 72mm

Plate Standard Dimension : width:220mm X Lenght : 160mm .
SKU: 5083 Aluminum Plate 72mm..
Delivery date: 1-2 days
*
*
*

Aluminum 5083  (Al Mg4,5Mn0.7)

Aluminum 5083 contains from 3 to 5% addition of chromium and manganese,

presenting the best characteristics of the 5000 series semi-finished aluminum

alloys. It guarantees good weldability, and an interesting resistance,

especially in the marine atmosphere. They are widely used in the naval segment

and in the industry in general.

MAIN CHARACTERISTICS

APPLICATIONS

  • Good machining
  • Excellent dimensional stability
  • Very good weldability
  • Excellent resistance to corrosion
  • Very good thermal conductivity
  • Excellent anodizing

  • Welded mechanical assemblies
  • Chemical industry
  • Refrigeration engineering
  • Prototypes of mold support plates, blow
  • molds and mold tools
  • Equipment and containers
  • Shipbuilding

Properties:

Chemical Composition

AL92.4 - 95.6 %
Mg4 - 4.9 %
Mn0.4 - 1 %
Si0.40%
Fe0.40%
OtherOtherBalance

Mechanical Properties

Hardness, Brinell, HB70 at 20 °C
Elongation, A16% at 20 °C
Elastic modulus, E71 GPa at 20 °C
Tensile strength, Rm283 MPa at 20 °C
Yield strength, YS124 MPa at 20 °C

General Properties

Density, ρ2.66 g/cm³ at 20 °C
Surface roughness, RMS0.4 μm

Aluminum 5083  (Al Mg4,5Mn0.7)

Aluminum 5083 contains from 3 to 5% addition of chromium and manganese,

presenting the best characteristics of the 5000 series semi-finished aluminum

alloys. It guarantees good weldability, and an interesting resistance,

especially in the marine atmosphere. They are widely used in the naval segment

and in the industry in general.

MAIN CHARACTERISTICS

APPLICATIONS

  • Good machining
  • Excellent dimensional stability
  • Very good weldability
  • Excellent resistance to corrosion
  • Very good thermal conductivity
  • Excellent anodizing

  • Welded mechanical assemblies
  • Chemical industry
  • Refrigeration engineering
  • Prototypes of mold support plates, blow
  • molds and mold tools
  • Equipment and containers
  • Shipbuilding

Properties:

Chemical Composition

AL92.4 - 95.6 %
Mg4 - 4.9 %
Mn0.4 - 1 %
Si0.40%
Fe0.40%
OtherOtherBalance

Mechanical Properties

Hardness, Brinell, HB70 at 20 °C
Elongation, A16% at 20 °C
Elastic modulus, E71 GPa at 20 °C
Tensile strength, Rm283 MPa at 20 °C
Yield strength, YS124 MPa at 20 °C

General Properties

Density, ρ2.66 g/cm³ at 20 °C
Surface roughness, RMS0.4 μm
Write your own review
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute nameAttribute value
Density2.66 g/cm3
Price330 EGP / Kg
